CSiXCAD is a plug-in for Bricsys® BricsCAD® that facilitates documenting in BricsCAD the design of building structures analyzed in ETABS® or SAP2000® and keeps track of design revisions.

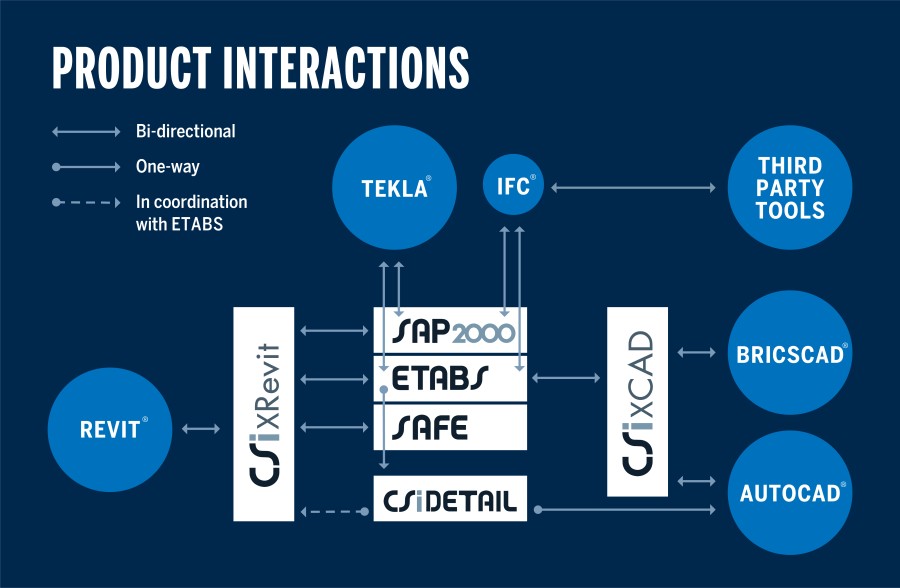

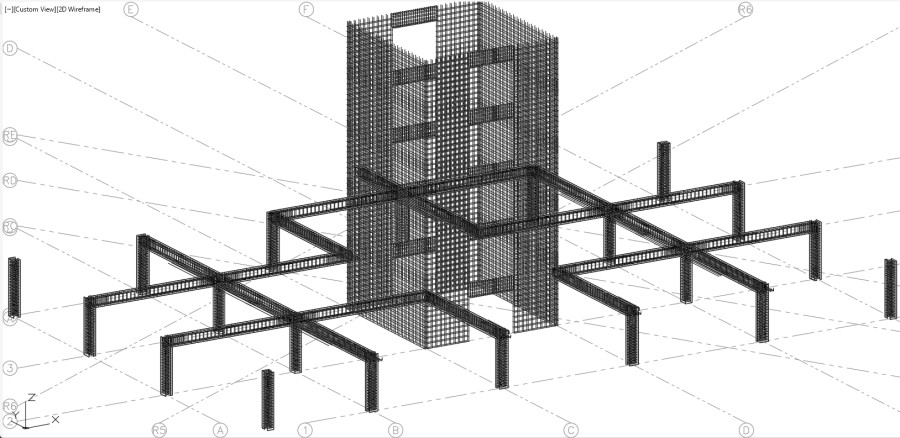

• CSiXCAD maintains a BIM model in the BricsCAD and can generate: Floor Plans, Elevations, 3D Models

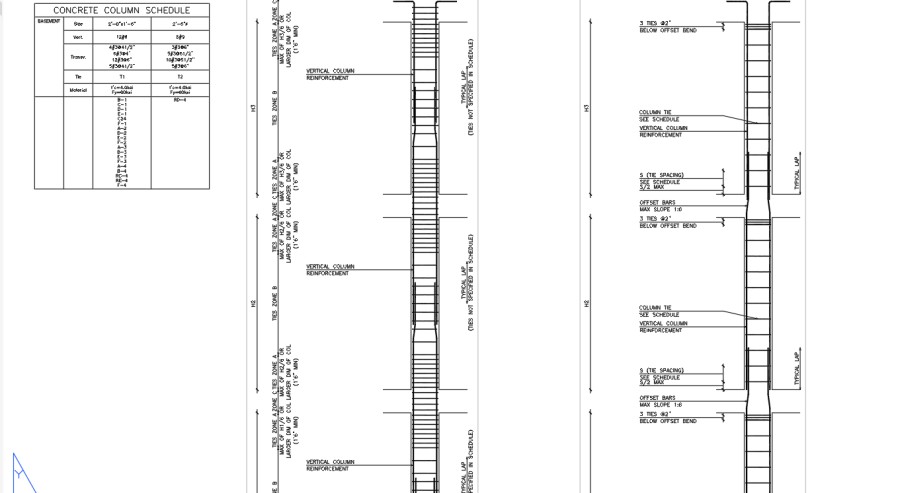

• Generation of Beam and Column Schedules
• Generation of Beam Reinforcement Elevations
• Generation of Wall Reinforcement Plans and Elevations
• Generation of Slab Reinforcement Plans

Description

Data in the CSiXCAD BIM model is defined only once and any changes to a structural item in a drawing are reflected on all drawings where that item is shown. CSiXCAD eliminates the need to manually transfer data and markups to CAD engineers and automatically generates an initial set of drawings that can then be customized and refined using CAD. When the engineer later makes changes to the original design model, CSiXCAD can compare the contents of its BIM model with the modified design model, and either import all changes or only selected changes. Previous edits made to the drawings in CSiXCAD are maintained, and a report listing the changes is generated.
