This comprehensive piping block library contains over 22,000 2D piping symbols in several different symbol categories. Created by CADToolsOnline.com.

• An inexpensive alternative to other piping software costing hundreds of dollars more
• Works with inch, millimeter or feet drawing units
• No learning curve. You'll be productive instantly
• No subscriptions or annual fees. Buy it once and keep using it
• Free support

Description

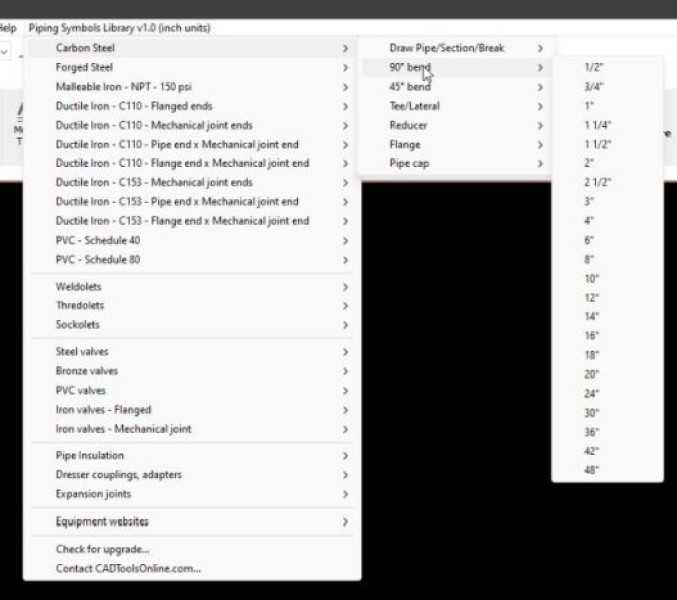

This is not just a set of blocks, but a fully functional easy to use program that loads in BricsCAD's menu bar. Just choose what you need from the pull-down menu. Try the demo version which contains piping symbols in size 4" only, but will function the same as the full version. The following pipe fittings, valves, etc. are included in the full version: Ductile Iron Flanged fittings: - sizes 3" through 48" - ANSI/AWWA C110/A21.10 Ductile Iron Mechanical Joint fittings: - sizes 3" through 48" - MJ x MJ, Pipe x MJ, Flange x MJ ends - ANSI/AWWA C110 & C153 Malleable Iron threaded (NPT) fittings - sizes 1/8" through 6" - ANSI/ASME B16.3 Class 150 Carbon Steel Buttweld fittings - sizes 1/2" through 48" - ASME/ANSI B16.5 & B16.9 PVC socket fittings - sizes 3/8" through 24" - ASTM D2466 Schedule 40 & 80 Forged Steel Threaded and Socketweld fittings - sizes 1/8" through 4" - ANSI/ASME B16.11 3000# & 6000# Weldolets, Thredolets, Sockolets - Views: side & end - Weights: standard, x strong, xx strong - 3000# & 6000# Valves: Carbon steel, Iron, Stainless steel, PVC & Bronze Flanged, mechanical joint, socket & threaded ends - Angle valves - Ball valves - Butterfly valves - Check valves - Diaphragm valves - Gate valves - Globe valves - Plug valves Pipe insulation symbols: - Pipe sizes: 1/2" through 48" - Insulation thickness: 1" through 4" Repair couplings and adapters: - Manufacturer: Dresser Couplings - Sizes 1/2" through 48" - Style 38 coupling (for steel pipe) - Style 138 coupling (for ductile iron pipe) - Style 128-W flanged adapter (for steel pipe) - Style 128-W flanged adapter (for ductile iron pipe) Expansion joints: - Manufacturer: Flexicraft - Styles: Rubber arch, Type N metal, Type NLC metal - Concentric & eccentric reducing - Sizes 1" to 48" - 150# & 300# flanged and buttweld ends
