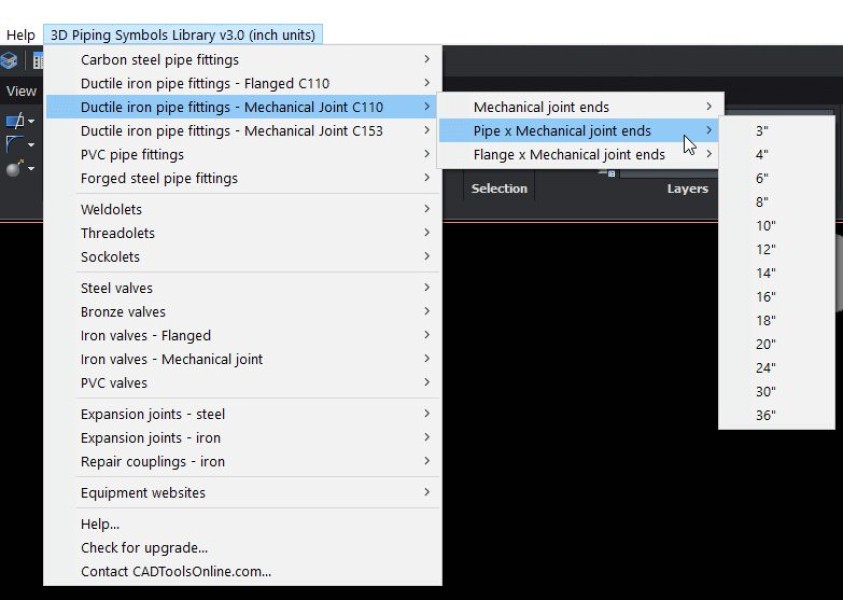

No need to browse through folders every time you need to insert a symbol. Simply point and click in the menu to choose from a wide range of 3D piping symbols.

• Contains 6,831 3D piping symbols in .dwg format.
• An inexpensive alternative to other software costing hundreds of dollars more.
• Works with inch, millimeter or feet drawing units.
• After you complete your layout, run Data Extraction to create a Bill of Material.
• No learning curve. You'll be productive instantly.

Description

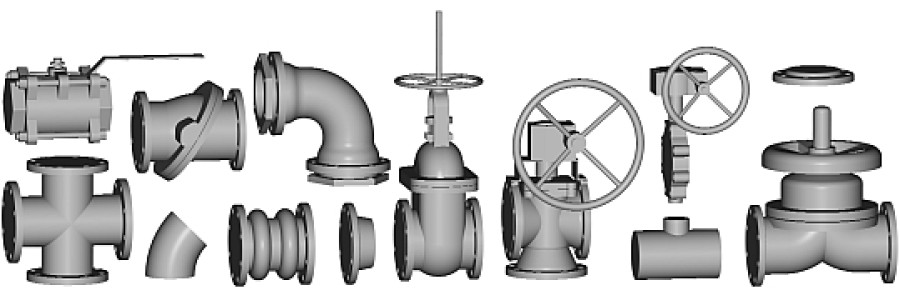

What's included in the library: Ductile Iron Flanged fittings: - sizes 3" through 48" - ANSI/AWWA C110 - Elbows - 11.25° , 22.5° , 30° , 45° , 90° - Tees - full size & reducing - 45° Wyes & laterals - full size & reducing - Crosses - Reducers - concentric & eccentric - Blind flanges Ductile Iron Mechanical Joint fittings: - sizes 3" through 48" - ANSI/AWWA C110 and C153 - MJ x MJ, MJ x Pipe, MJ x Flange ends - Elbows - 11.25° , 22.5° , 30° , 45° , 90° - Tees - full size & reducing - 45° Wyes & laterals - full size & reducing - Crosses - full size & reducing - Reducers - concentric & eccentric Carbon Steel Buttweld fittings: - sizes 1/2" through 24" - ASME/ANSI B16.5 - Elbows - 90° & 45° - Tees - full size & reducing - Reducers - concentric & eccentric - Pipe cap - Flanges - 150# through 2500# weld neck, threaded, slip-on, lap joint, blind (includes bolt holes & raised faces) PVC socket fittings: - sizes 3/8" through 24" - ASTM D2466 - Schedule 40 & 80 - Elbows - 11.25° , 22.5° , 30° , 45° , 90° - Tees - full size & reducing - 45° Wyes & laterals - full size & reducing - Crosses - full size & reducing - Reducers - concentric - Caps - Unions - Couplings - Flanges Forged Steel Threaded & Socketweld fittings: - sizes 1/8" through 4" - 3000# & 6000# - ANSI/ASME B16.11 - Elbows - 45°, 90° - Tees - 45° Laterals - Crosses - Caps - Unions - Couplings - Reducing inserts, bushings & couplings Expansion joints: - Steel and iron - Sizes: 1 1/4" through 48" - Style: Rubber arch - 1, 2 & 3 arch - Concentric & eccentric reducing Weldolets, threadolets & sockolets: - Weldolets - standard, extra strong & double-extra strong - Threadolets - 3000# & 6000# - Sockolets - 3000# & 6000# Steel valves: - Ball - Butterfly - Check - swing, tilt & wafer style - Gate - Globe - Plug Bronze valves: - Angle - Check - Gate - Globe Iron valves - flanged ends: - Angle - Ball - Butterfly - Check - Gate - Globe - Plug Iron valves - mechanical joint ends: - Butterfly - Gate - Plug PVC valves: - Ball - Ball check - Butterfly - Diaphragm - Gate - Globe - Needle
