Built around the reliable BricsCAD platform, TheoContour uses simple POINT entities to generate either contours or surfaces. No special initial preparationis required, just select the points, set the contour step and go.

• Import and Export - Read points (nodes) from file. Interface with TheoOffice
• TIN Surfaces - multiple TIN's within a single drawing file. Surface Smoothing
• Contouring - Straight Lines or Splined Polylines. Contour Smoothing
• Surfacing - Colouring by Elevation or Slope.
• Cross Sections - Between 2 points or along a path (polyline)

Description

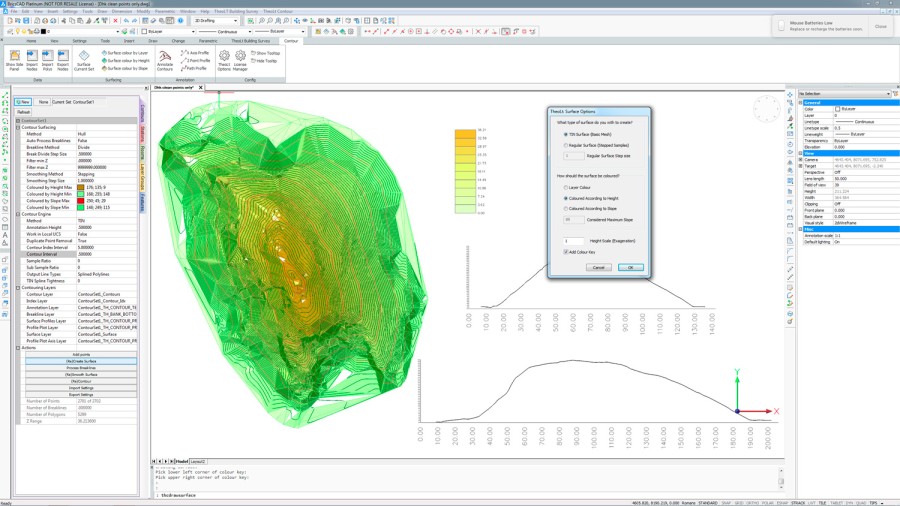

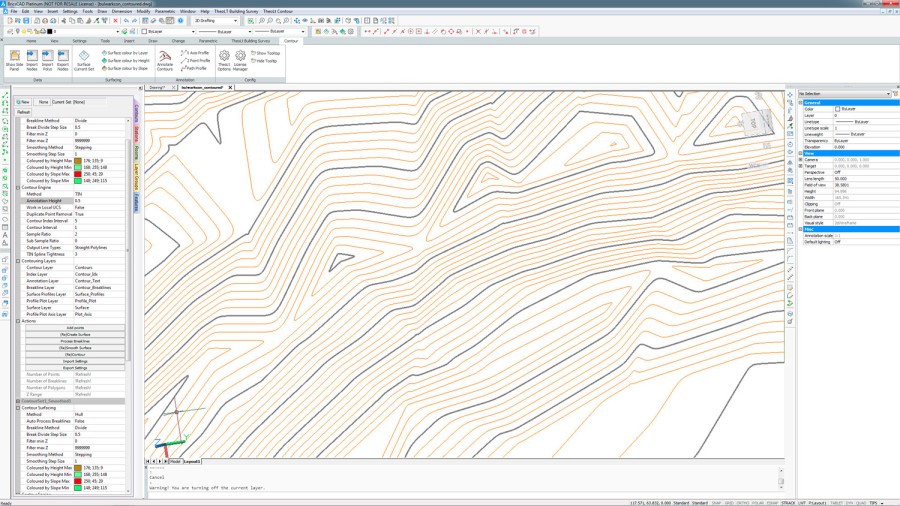

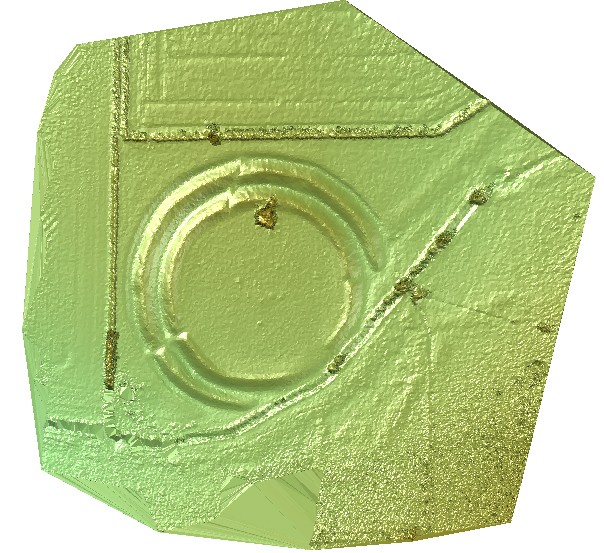

THEOCONTOUR: POWERFUL CONTOUR GENERATION IN BRICSCAD TheoContour utilises a very efficient surfacing and contouring engine which enables the results to be created quickly with the minimum of set-up time. The side panel controls the parameters required, enabling the user to tweak the settings quickly to get the desired results. Tin Surfaces are generated quickly with smoothing options available to allow the production of smooth, flowing contours. Once contoured, text heights may be added to the index lines using the simple annotate tool. The profile tools allow sections and slopes to be plotted with axes scaled independently as required to exaggerate features. TIN surfaces may be displayed as CAD surfaces, with exaggerated Z scale and coloured by slope or elevation. By working in the current UCS (User coordinate system), TheoContour is not only limited to working on terrain it has also be successfully used for analysing other surfaces such as stones and building faces.
