CP-Symbols HVAC & Piping - Industrial systems possesses the most important symbols used in industrial installations schemes and P&ID schemes.

• industrial systems (armature and equipment, devices, measurement instruments, others),

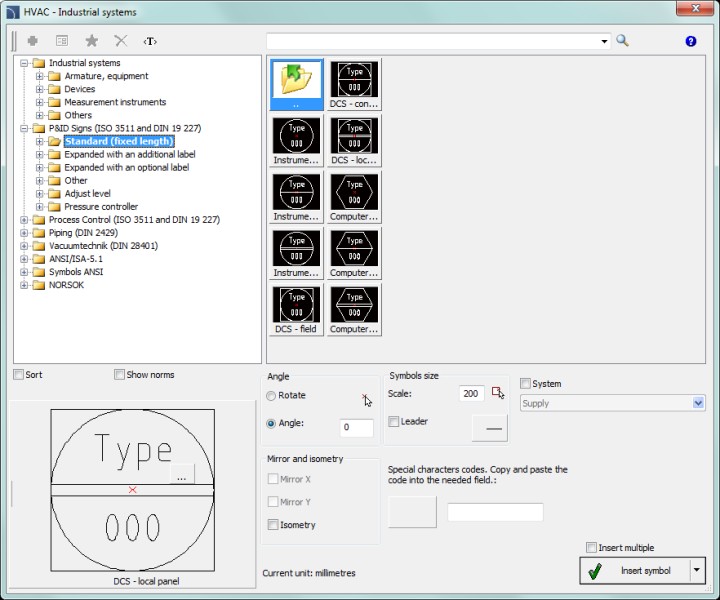

• P&ID signs- ISO 3511 and DIN 19 227 (standard with fixed length, expanded with an additional label, expanded with an optional label, adjust level, pressure controller, other),
• process control - ISO 3511 and DIN 19 227 (sensors, transducers, controllers, actuators, actuators and accessories, devices adjusting, conversion of analog signal, the impact of the binary signal into an analog, others),

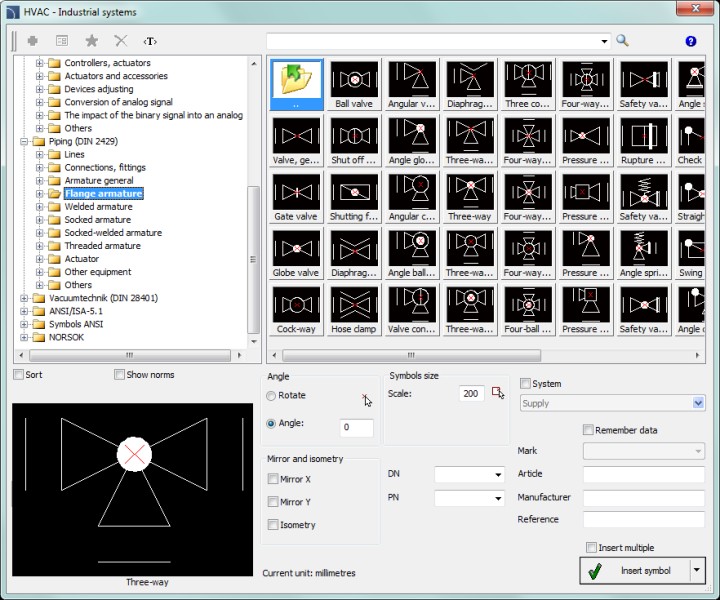

• piping - DIN 2429 (lines, connections and fittings, general armature, flange armature, welded armature, socked armature, socked-welded armature, threaded armature, actuators, other equipment),
• vacuumtechnik - DIN 28401 (e.g. vacuum pumps, condensate traps, cold traps, vacuum gauges),

Description

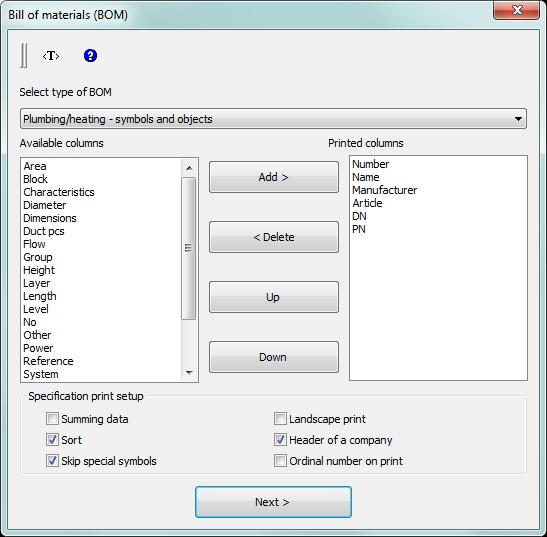

CP-Symbols program also contains general commands: Lines (pipes, ducts, cables) – this function allows to draw single-line lines in a schematic view. Frames and tables – contains a library of basic frames and drawing tables. Attributes and descriptions – is used to edit attribute values of one or many symbols. Bill of materials – is used to create specifications from elements used in the drawing. Languages: User interface supports 23 languages, i.e. English, Bulgarian, Chinese (Simplified), Croatian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Polish, Portuguese, Romanian, Russian, Serbian, Slovenian, Spanish, Swedish and Turkish.
