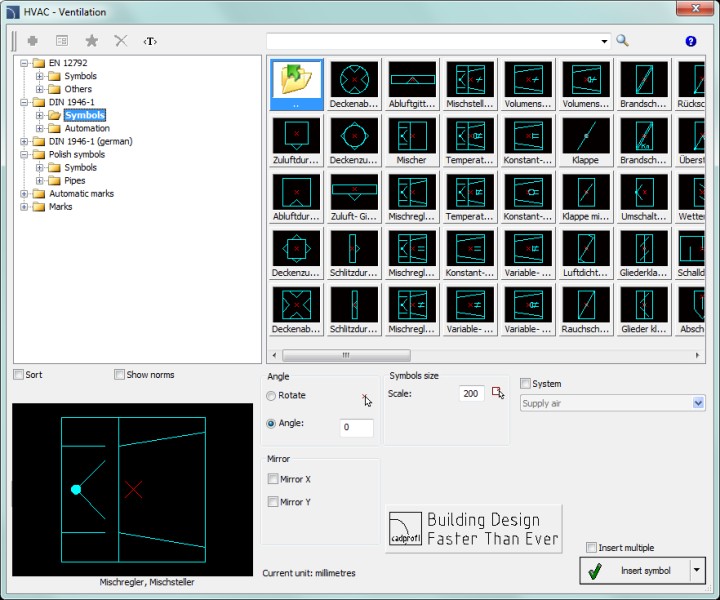

CP-Symbols HVAC & Piping - Ventilation possesses a database of basic symbols used in ventilation and air condition installations by PN and DIN standards.

• EN 12792 (symbols - e.g. fans, dampers, air heaters, air coolers; other - e.g. outlets, weather protection grilles, heat exchangers),
• DIN 1946-1 (symbols, automation),
• Polish symbols (symbols - e.g. filters, heaters, dampers, air anemostats),
• automatic marks (e.g. object dimension, rectangular duct cross section, circular duct label),
• marks (e.g. flow label, overflow arrow).

Description

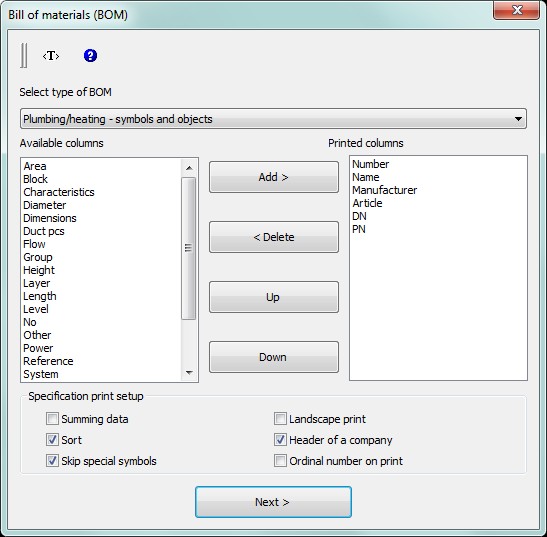

CP-Symbols program also contains general commands: Lines (pipes, ducts, cables) – this function allows to draw single-line lines in a schematic view. Frames and tables – contains a library of basic frames and drawing tables. Attributes and descriptions – is used to edit attribute values of one or many symbols. Bill of materials – is used to create specifications from elements used in the drawing. Languages: User interface supports 23 languages, i.e. English, Bulgarian, Chinese (Simplified), Croatian, Czech, Danish, Dutch, Finnish, French, German, Greek, Hungarian, Italian, Latvian, Polish, Portuguese, Romanian, Russian, Serbian, Slovenian, Spanish, Swedish and Turkish.
