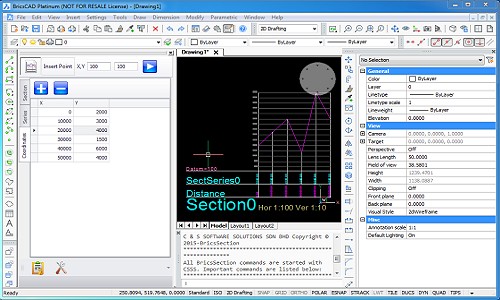

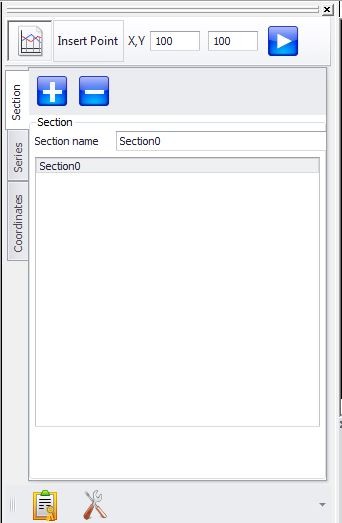

It is simple application in which it can help user to draw cross section in faster mode instead of traditional draw it manually in CAD. With a list of coordinates input into data grid, a section or more can be generated in second. User can set it own scale by horizontally or vertically, user define vertical ruler, text size for title, series etc.

• Generate cross section/profile
• User preference scale in horizontal and vertical
• User define text sizes for title, series, distance etc
• More than one series is allowed
• More than one section is allowed

Description

BricsSection-Cross Section It is a simple application in which it can help user to draw cross section in faster way instead of traditional way to draw it manually in CAD. With a list of coordinates input into data grid, a section or more can be generated in second. User can set it own scale by horizontally or vertically, user define vertical ruler, text size for title, series etc.

Documentation
