In addition to standard reinforcement steel bar bending forms (DIN 1356) are also bending their own forms. Alternatively, a two-or three-dimensional input is possible. Positions can be varied arbitrarily and often represent. Recurring components (eg recesses, etc.) can enter through so-called variant designs quickly and accurately. The mesh reinforcement can be entered next to the laying of individual sheets or mats in series and entire polylines.

• Intelligent digital 2D / 3D rebar steel - mesh reinforcement
• A navigator helps in the search for reinforcement positions
• Automatically linked representations
• Automatic assignment of position numbers.

Description

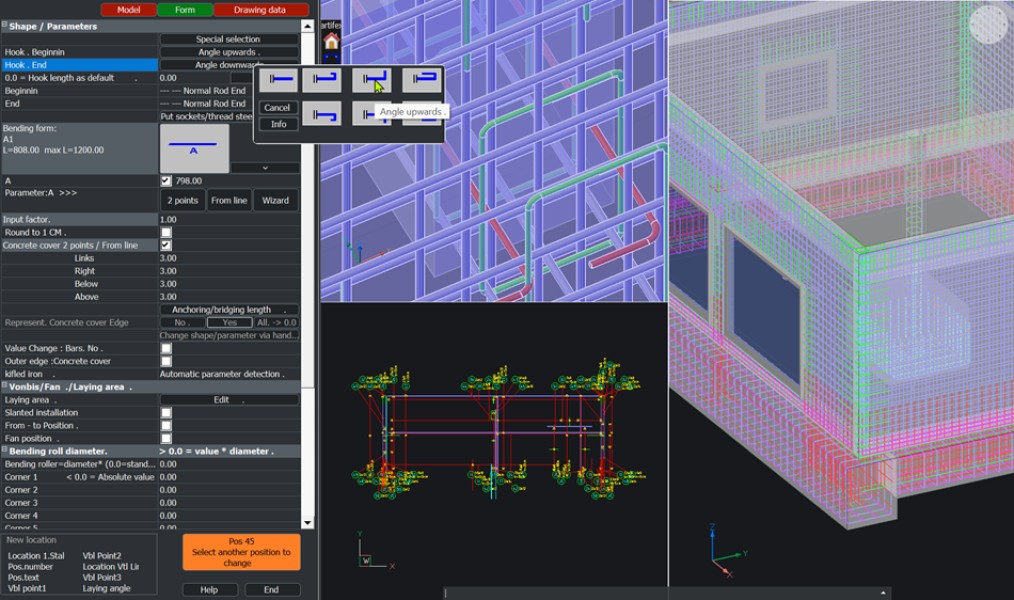

reinforcement design Intelligent digital 2D / 3D reinforcement modules for rod and mesh reinforcement with integrated core volume. When entering a model is created in a database. Any number of representations of this model can be inserted and are automatically updated with the specifications of the model. The modules support the BRX technique. Copy Slide, mirrors, etc. are possible with the basic functions of the program. Simple output of steel and mesh schedules, evaluation and further processing is made possible by storing the reinforcing elements in a database. The use of intelligent parametric objects allow the entry of reinforcement in any CAD - drawing. Model Data menu special 2 - or 3-dimensional objects as "scarf edges" are not required to, when using the artifex - find building design or special features of the program but using reinforcement. A NAVIGATOR helps in finding out reinforcing positions and allows direct change from the search results. Special bending forms. Through a special non-standard forms, almost all special area of the reinforcement, such as tunnels or 3D reinforcement - forms are created and transferred. The high degree of automation and reduce the interaction between the representations of the time required for the installation and allow such input the creation of new positions by copying and modifying existing positions.
